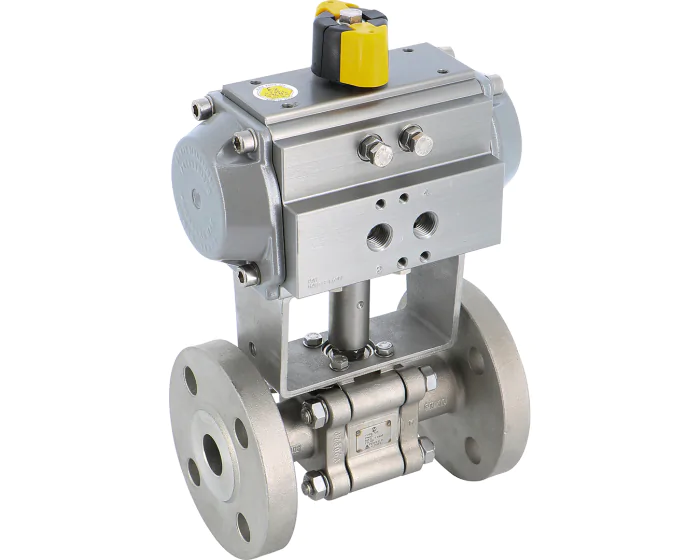

The 7034 series 3-piece body ball valve has a stainless steel (1.4408) body and ball and PTFE/carbon seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 40 bar, TS: 220°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 72.5 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Connections | Flanged PN40 |
| Seats | PTFE-Carbon |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Double acting | 272232017006R | S1001901 |
€425.27
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Spring return | 272232017107R | S1001902 |
€475.51
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Double acting | 272233017006R | S1001903 |
€457.13
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Spring return | 272233017107R | S1001904 |
€507.81
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Double acting | 272234017006R | S1001905 |
€551.59
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Spring return | 272234017108R | S1001906 |
€648.09
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Double acting | 272235017007R | S1001907 |
€714.77
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Spring return | 272235017108R | S1001908 |
€810.01
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Double acting | 272236017007R | S1001909 |
€814.41
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Spring return | 272236017109R | S1001910 |
€943.43
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Double acting | 272237017008R | S1001911 |
€1,213.41
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Spring return | 272237017110R | S1001912 |
€1,373.41
(excl. btw)
|
add to cart |
